SPHERA EVO 2.0

Air-to-water Refrigerant-split heat pump with DHW tank

SQKN-YEE 1 TC + MiSAN-YEE 1 S 2.1÷8.1

The ideal indoor climate in any season

Warm in winter, cool in summer and domestic hot water always ready and available. It's all in this compact and quiet unit.

Highly sustainable, highly efficient

The system performance suits your budget and meets your family's needs: no more waste of water or extra charges.

Compact and comfort, all in one

SPHERA EVO 2.0 for solar photovoltaic and solar thermal panels: make the present more sustainable.

Graphic house with solar panel on roof, connects SPHERA EVO 2.0 to solar panels

Space-saving design

No bigger than a washing machine to perfectly fit your home interiors.

Free Cooling / Heating

Provides Cooling / Heating for free (on certain conditions)

DHW

Produces Domestic Hot Water

Control via the App

Can be managed via App

User interface / thermostat

The user interface can be used as a thermostat

Free Cooling / Heating

Provides Cooling / Heating for free (on certain conditions)

DHW

Produces Domestic Hot Water

Control via the App

Can be managed via App

User interface / thermostat

The user interface can be used as a thermostat

Technical Synthesis

Dimensions Indoor Unit (Length x Height x Depth)

Version with ACS 190 lt: from 600x1696x612 mm
Version with ACS 250 lt: from 600x2010x6112 mm

Dimensions of Outdoor Unit (Length x Height x Depth)

From 920x712x400 mm

Heating Efficiency Class (Medium Climate)

A+++ (Water 35 °C)
A++ (Water 55 °C)

Consecutive showers available

from 4 to 5

Home surface range

From 42 to 170 m²

Sound level indoor unit

from 41 dB(A) (like a refrigerator)

Complete your system

Make your heat pump more efficient: optimise performance and energy consumption for eco-sustainable comfort.

Looking for Support?

Explore our alternative solutions

EDGE PRO

Reversible air/water heat pump monoblock for heating, cooling and domestic hot water production

WiSAN-PMP 1 S 2.1-8.1T

HYDRO-SPLIT version MINI, wall-mounted indoor unit

HYDRO-SPLIT MINI version

Wall-mounted indoor unit with DHW tank for Hydro-split systems

WISAN-YME 1 S + HQCN-NEE 1 MC A - WISAN-PME 1 S + HQCN-NEE 1 MC

Hydro-split INVISIBLE Version

Invisible, uncased indoor unit for your Hydro-Split system.

WiSAN-YME 1 S + HQCN-NEE 1 IC A WiSAN-PME 1 S + HQCN-NEE 1 IC

HYDRO-SPLIT version BOX: WISAN-YME 1 S + HQCN-NEE 1 BC A WISAN-PME 1 S + HQCN-NEE 1 BCÈ piccola ma potente

Hydro-split BOX Version

Wall-mounted indoor unit for your Hydro-Split system.

WISAN-YME 1 S + HQCN-NEE 1 BC A WISAN-PME 1 S + HQCN-NEE 1 BC

Hydro-Split TOWER Version

Indoor hydronic unit with base with DHW tank for Hydro Split systems

WISAN-YME 1 S + HQCN-NEE 1 TC A WISAN-PME 1 S + HQCN-NEE 1 TC A

EDGE F

Air-to-water packaged unit heat pump

WiSAN-PME 1 S 2.1÷8.1

EDGE EVO 2.0 - EXC

Air-to-water packaged unit heat pump

WiSAN-YME 1 S 2.1÷14.1

SPHERA EVO 2.0 INVISIBLE

Built-in air-to-water refrigerant-split heat pump

SQKN-YEE 1 IC + MiSAN-YEE 1 S 2.1÷5.1

SPHERA EVO 2.0 BOX

Wall-mounted air-to-water Refrigerant-split heat pump

SQKN-YEE 1 BC + MiSAN-YEE 1 S 2.1÷8.1

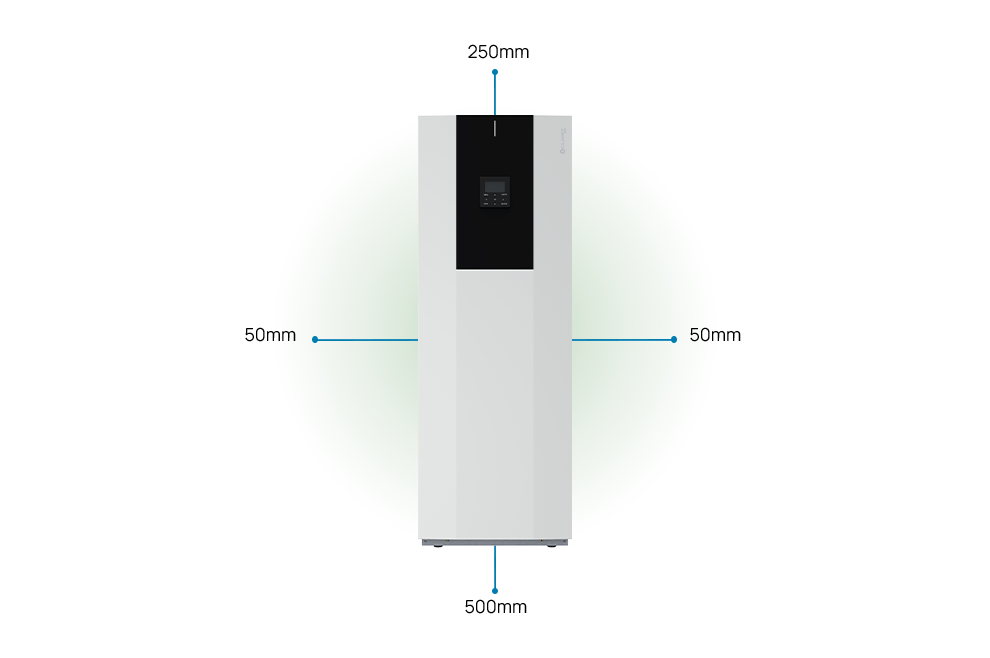

Distances to maintain indoor unit 50millimetres side, 500millimetres front, 250millimetres above.

Optimised space for installation

For proper functioning of the unit, it is important to maintain the specified clearances. Check or ask one of our consultants to study the best position in your environment.

Technical Specifications

Size

Dimensions Indoor Unit (Length x Height x Depth)

Version with ACS 190 lt: from 600x1696x612 mm Version with ACS 250 lt: from 600x2010x6112 mm

Dimensions of Outdoor Unit (Length x Height x Depth)

From 920x712x400 mm

Operating range (outside air)

Operating range in Heating

-25 / 35 °C

Operating range in Cooling

-5 / 35 °C

Seasonal Efficiency

Heating Efficiency Class (Medium Climate)

A+++ (Water 35 °C) A++ (Water 55 °C)

Domestic Hot Water Production

A+ with Withdrawal profle L or XL

Performance

Heating (Outdoor air 7 °C / water 35 °C)

from 4.32 kW to 16 kW: COP up to 5.42

Heating (Outdoor air -7 °C / water 35 °C)

from 4.17 kW to 13.4 kW: COP up to 3.23

Cooling (Outdoor air 35 °C / water 18 °C)

from 4.55 kW to 14.2 kW: EER up to 3.50

Water mixed at 40 °C

Until 269 lt

Dimension

Consecutive showers available

from 4 to 5

Home surface range

From 42 to 170 m²

Sound power

Sound level indoor unit

from 41 dB(A) (like a refrigerator)

Sound level of outdoor unit

from 50 dB(A)

Possible combinations

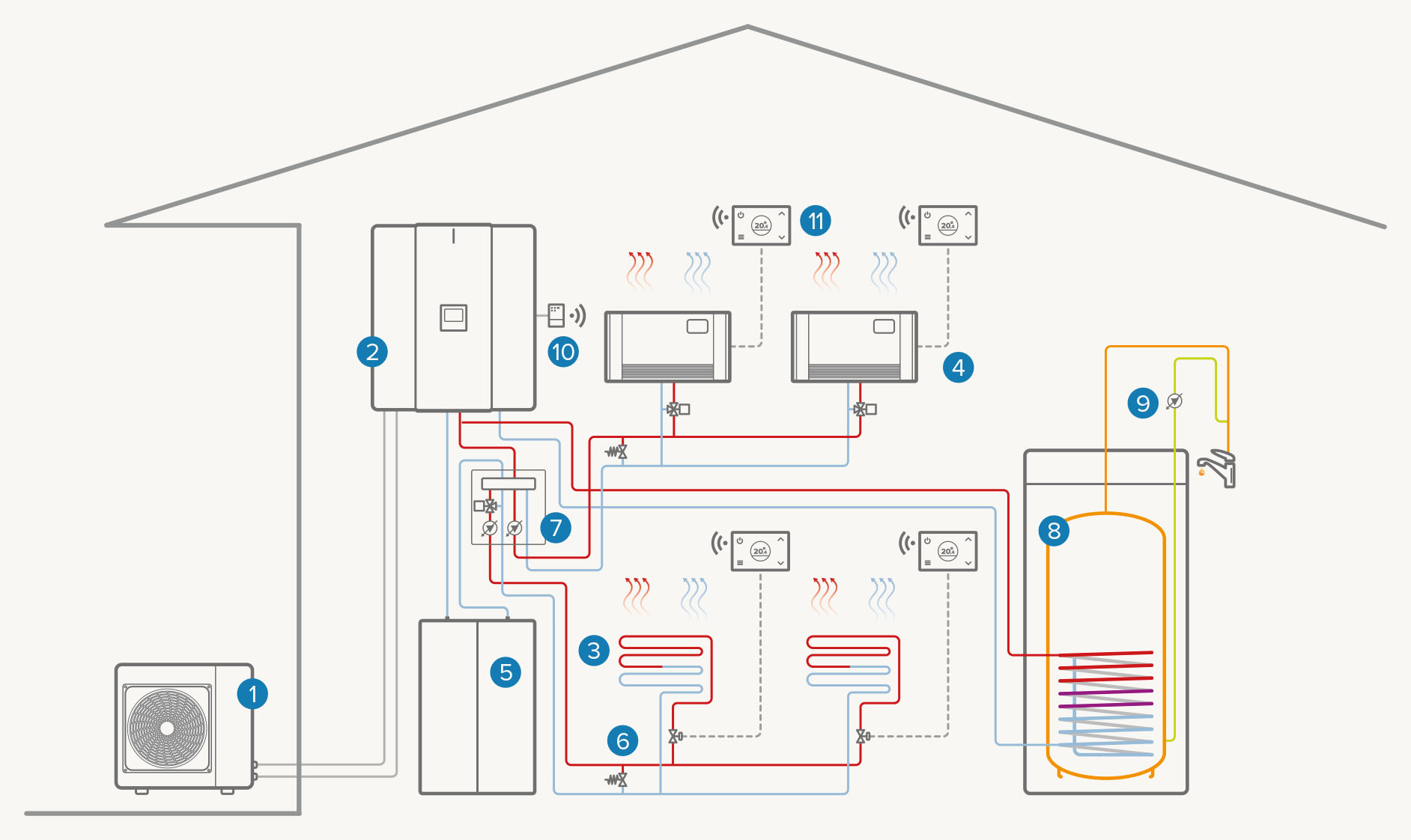

Full electric two-zone system: Heating / Cooling / DHW

Full electric two-zone system:
Heating / Cooling / DHW
outdoor unit
indoor unit
mixed heating/cooling zone
direct heating/cooling zone
system inertial storage (optional)
bypass*
kit for managing 2 areas (optional)
DHW tank (optional)
DHW recirculation pump*
SwitchConnect Wi-Fi receiver (optional)
HID-TConnect2 Wi-Fi chronothermostat (optional)

Note: solar connection kit and booster kit can coexist

*from external supply

Full electric two-zone system: Heating / Cooling / DHW

Possible combinations

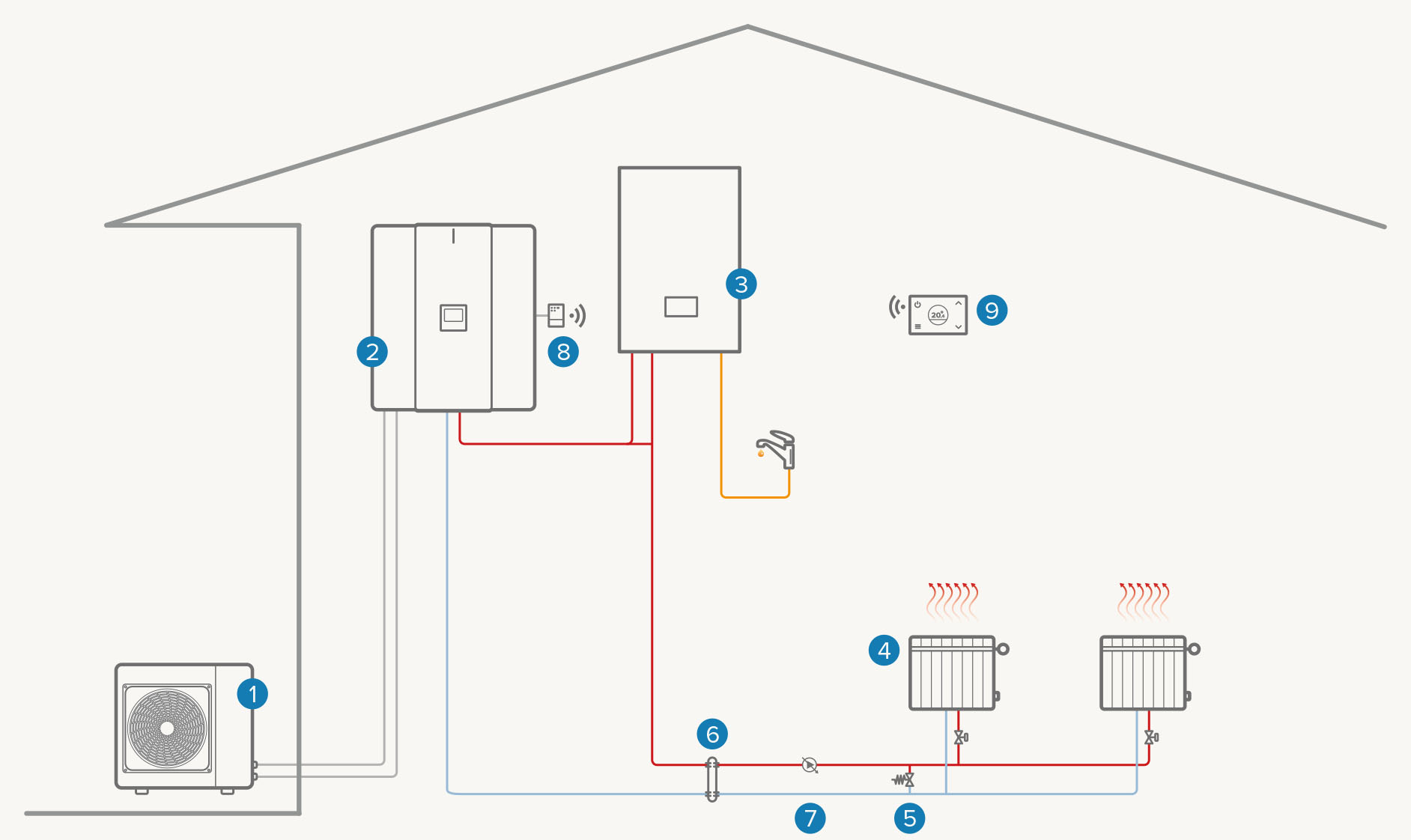

Hybrid single-zone system: Heating / DHW

outdoor unit
indoor unit
heating area
bypass*
hydraulic separator (optional)
secondary circuit pump*
DHW tank (optional)
DHW recirculation pump*
boiler heating only*
kit for management of a boiler from another supplier (optional)
HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Hybrid single-zone system: Heating / DHW

Possible combinations

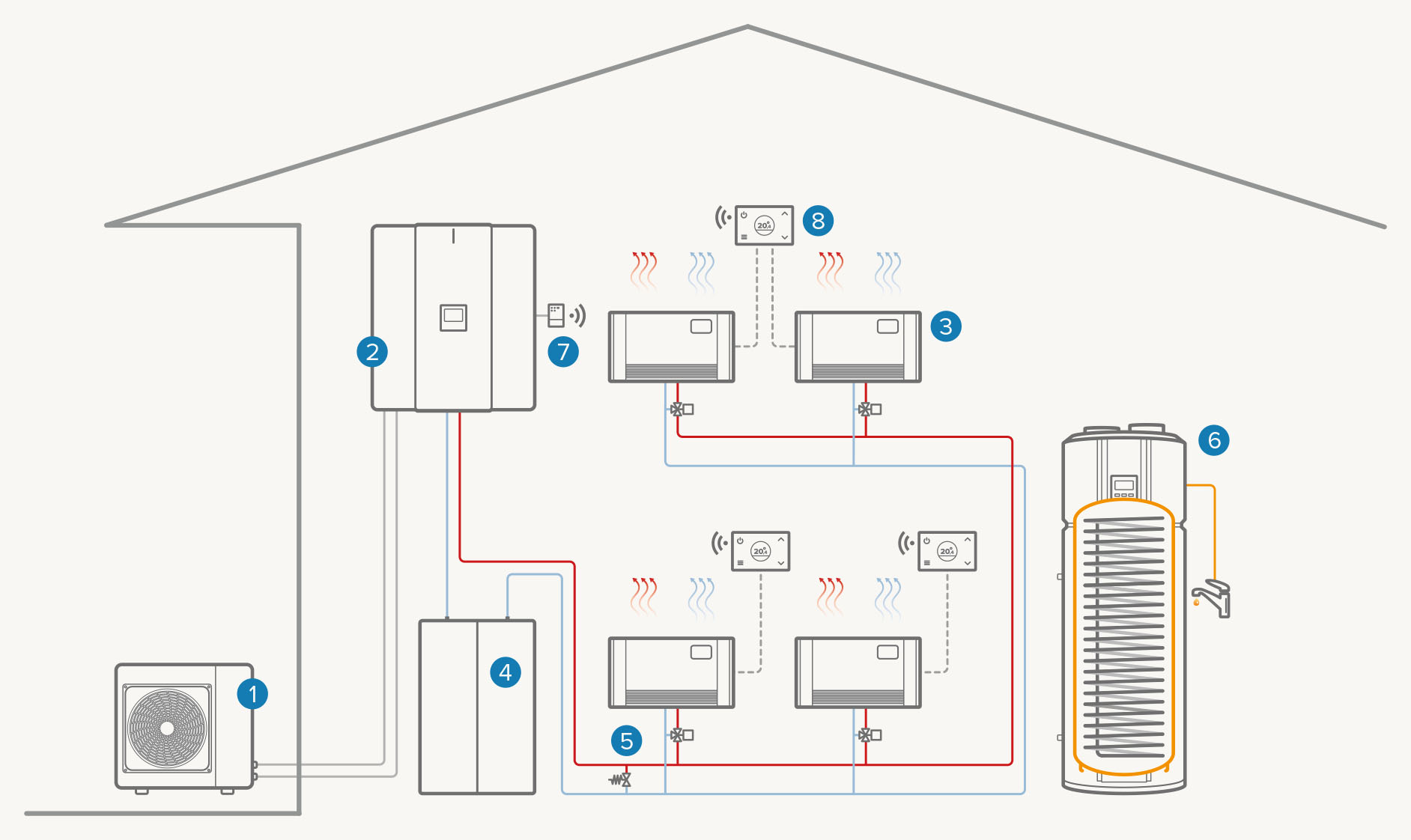

Full electric single-zone system: Heating / Cooling / DHW

outdoor unit
indoor unit
heating/cooling zone
system inertial storage (optional)
bypass*
heat pump for DHW
SwitchConnect Wi-Fi receiver (optional)
HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Full electric single-zone system: Heating / Cooling / DHW

Possible combinations

Hybrid single-zone system: Heating / DHW

outdoor unit
indoor unit
instantaneous boiler (Hybrid version)
heating area
bypass*
hydraulic separator (optional)
secondary circuit pump*
SwitchConnect Wi-Fi receiver (optional)
HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Possible combinations

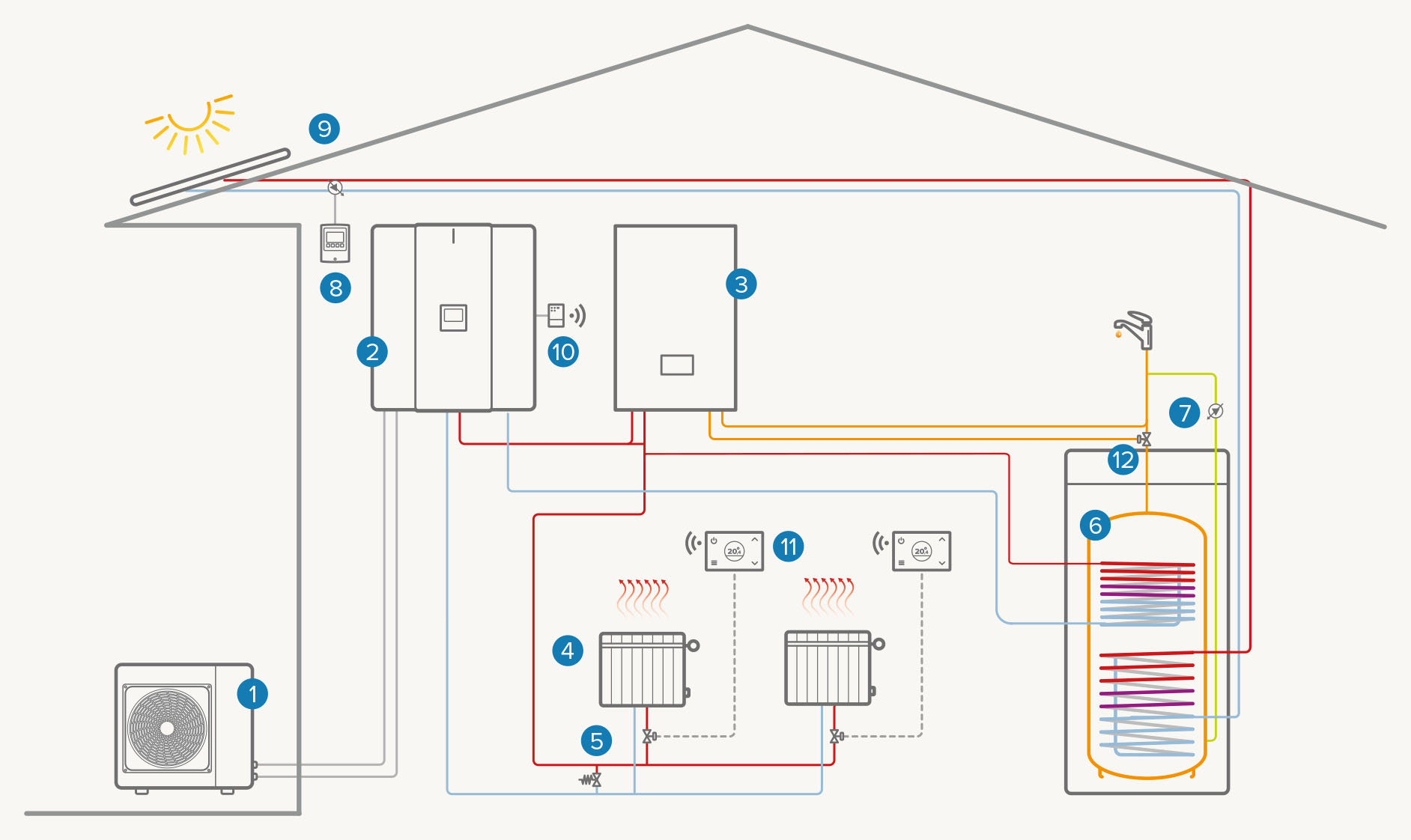

Hybrid single-zone system: Heating / Cooling / DHW

outdoor unit
indoor unit
instantaneous boiler (Hybrid version)
heating area
bypass*
DHW tank with solar predisposition (optional)
DHW recirculation pump*
kit di circolazione solare (opzionale)
ELFOSun3 thermal solar (optional)
SwitchConnect Wi-Fi receiver (optional)
HID-TConnect2 Wi-Fi chronothermostat (optional)
Thermostated diverter valve for DHW (optional)

*from external supply

Hybrid single-zone system: Heating / Cooling / DHW

System elements

CLIVET EYE

Smart Living remote monitoring and management system

ELFOSUN3

Flat-plate solar thermal collector for combination with heating and domestic hot water production systems

F-L / F-XL / FH-XL

CONTROL4 NRG

Comfort and energy assistance for Clivet Smart Living

HID-TCONNECT

Chronothermostat with temperature control and management via App /Voice control

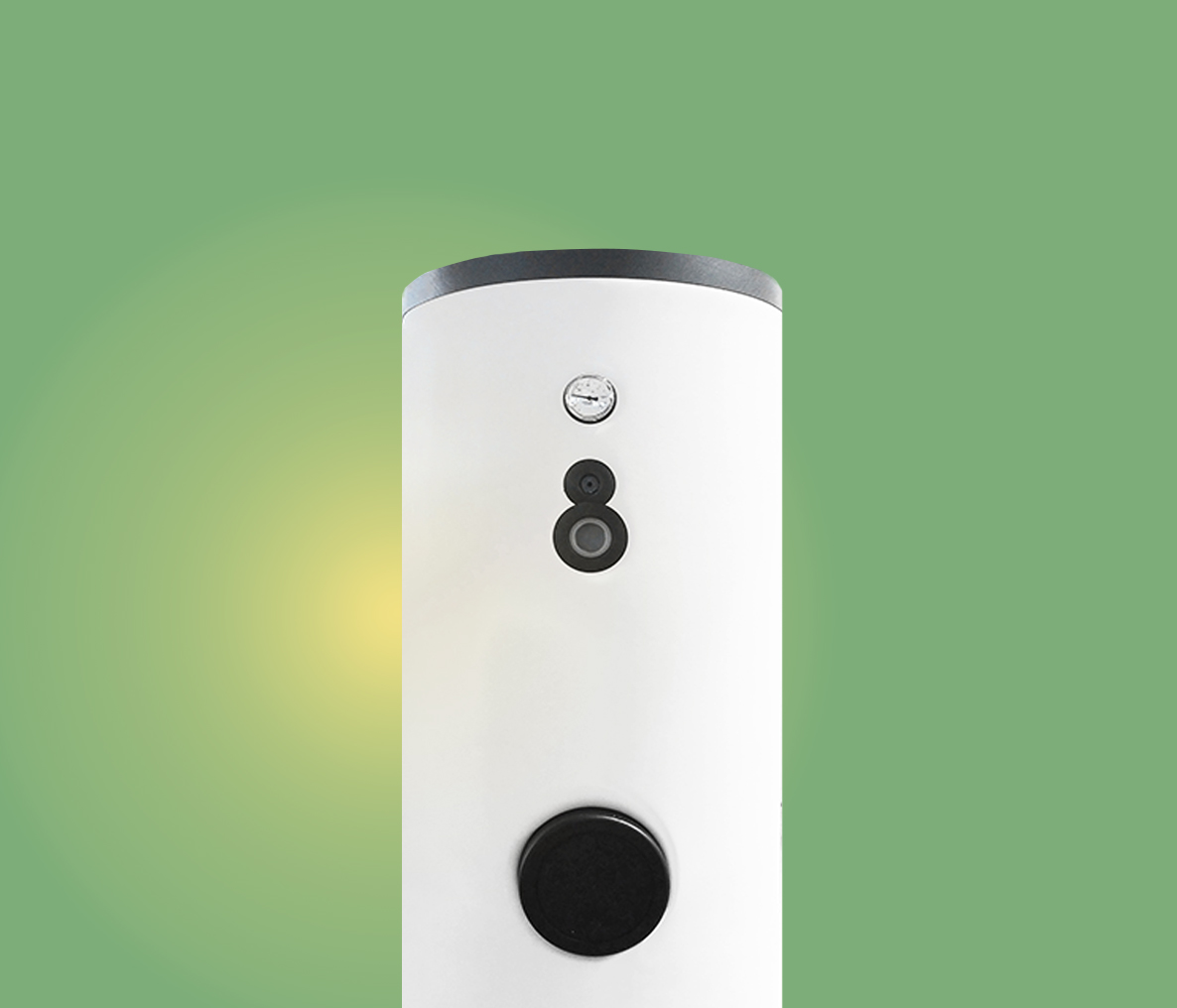

Domestic hot water tanks ACS

Domestic hot water tanks for heat pumps

SPHERA EVO 2.0 BOX

Wall-mounted air-to-water Refrigerant-split heat pump

SQKN-YEE 1 BC + MiSAN-YEE 1 S 2.1÷8.1
