Hydronic modules are designed to simplify installation, reducing both the operations and the expertise required, so you can immediately have your ideal climate in combination with a packaged heat pump.
HYDRO-SPLIT MINI version
Wall-mounted indoor unit with DHW tank for Hydro-split systems
WISAN-YME 1 S + HQCN-NEE 1 MC A - WISAN-PME 1 S + HQCN-NEE 1 MC
A XS size with XL performances
It easily fits mini flats and small offices. Heating, cooling and domestic hot water available with a space-saving solution.

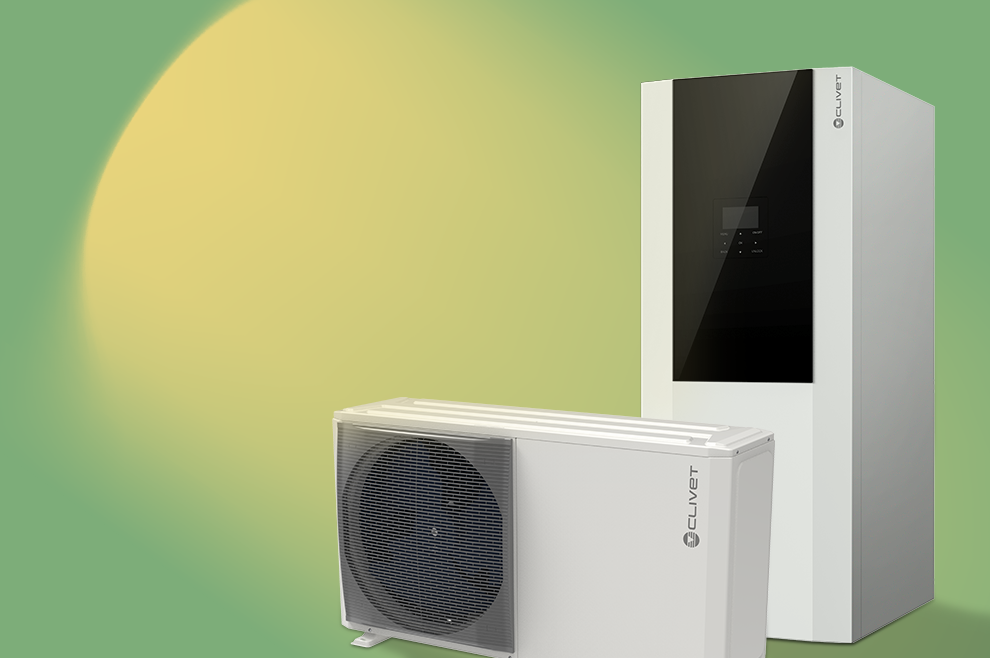

Same quality as ever, no extra work involved

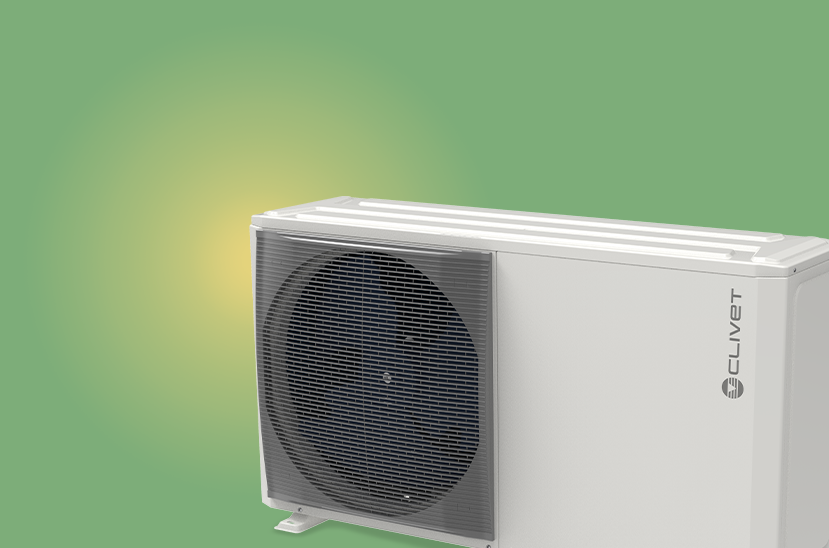

Combined with EDGE F packaged heat pumps it replaces a standard boiler. No additional fittings required.

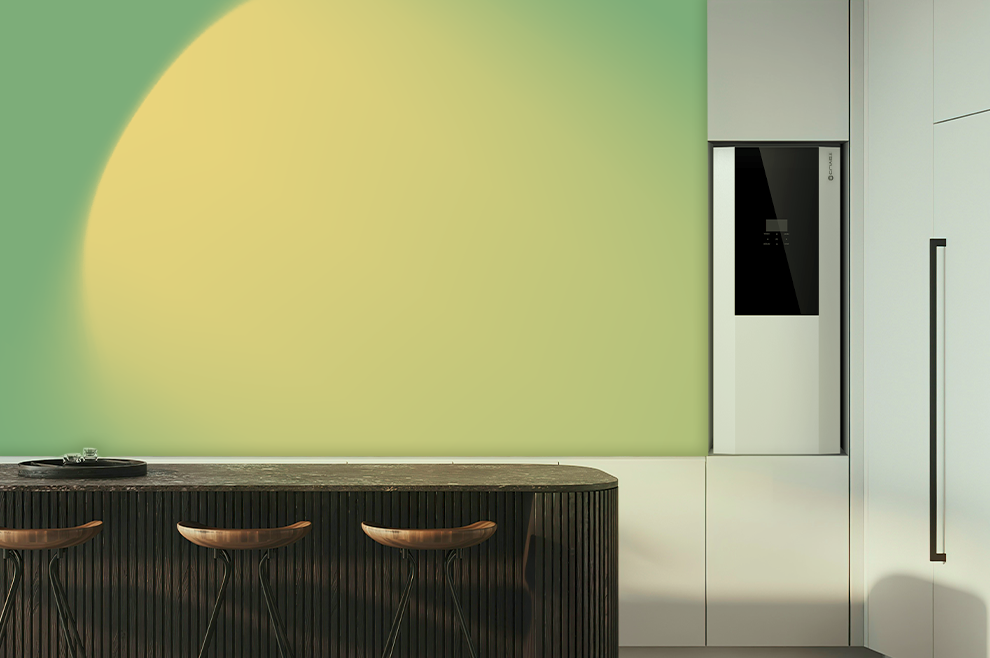

Same space, higher efficiency
To be installed in combination with standard radiator systems: no extra work required. Moreover it fits into the space of the existing boiler. No need to reorganize your home.
Free Cooling / Heating
Provides Cooling / Heating for free (on certain conditions)
Instant DHW
Quickly produces Domestic Hot Water on demand
User interface / thermostat
The user interface can be used as a thermostat
Clivet Eye monitoring
Can be monitored remotely with Clivet Eye
Free Cooling / Heating
Provides Cooling / Heating for free (on certain conditions)
Instant DHW
Quickly produces Domestic Hot Water on demand
User interface / thermostat
The user interface can be used as a thermostat
Clivet Eye monitoring
Can be monitored remotely with Clivet Eye

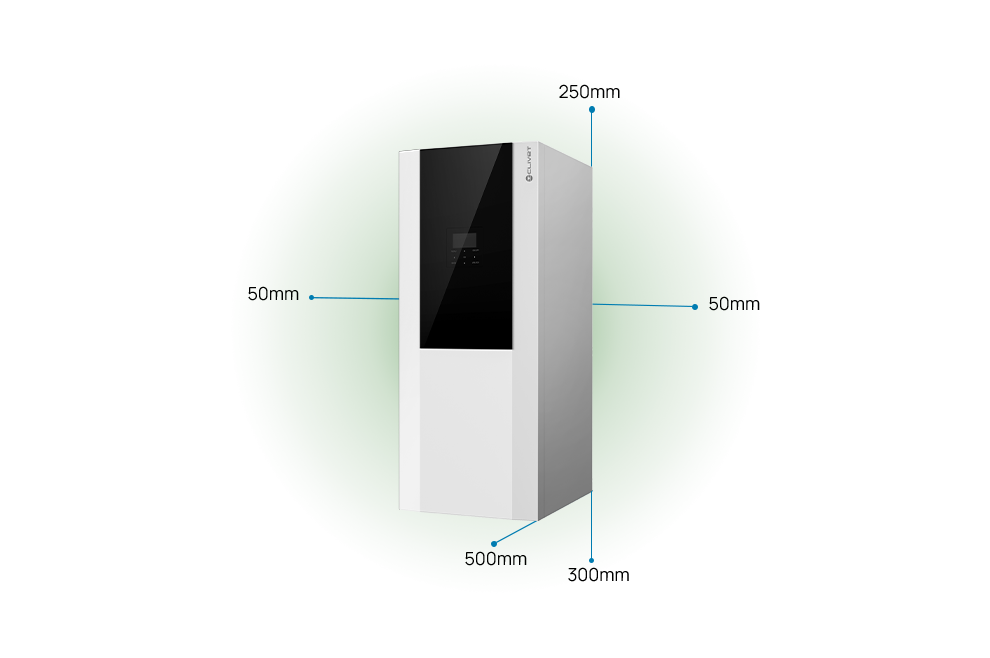

Optimised spaces.
It is essential to comply with the distances indicated by the green areas to ensure correct operation of the unit. Check or ask one of our consultants to study the best location in your environments.

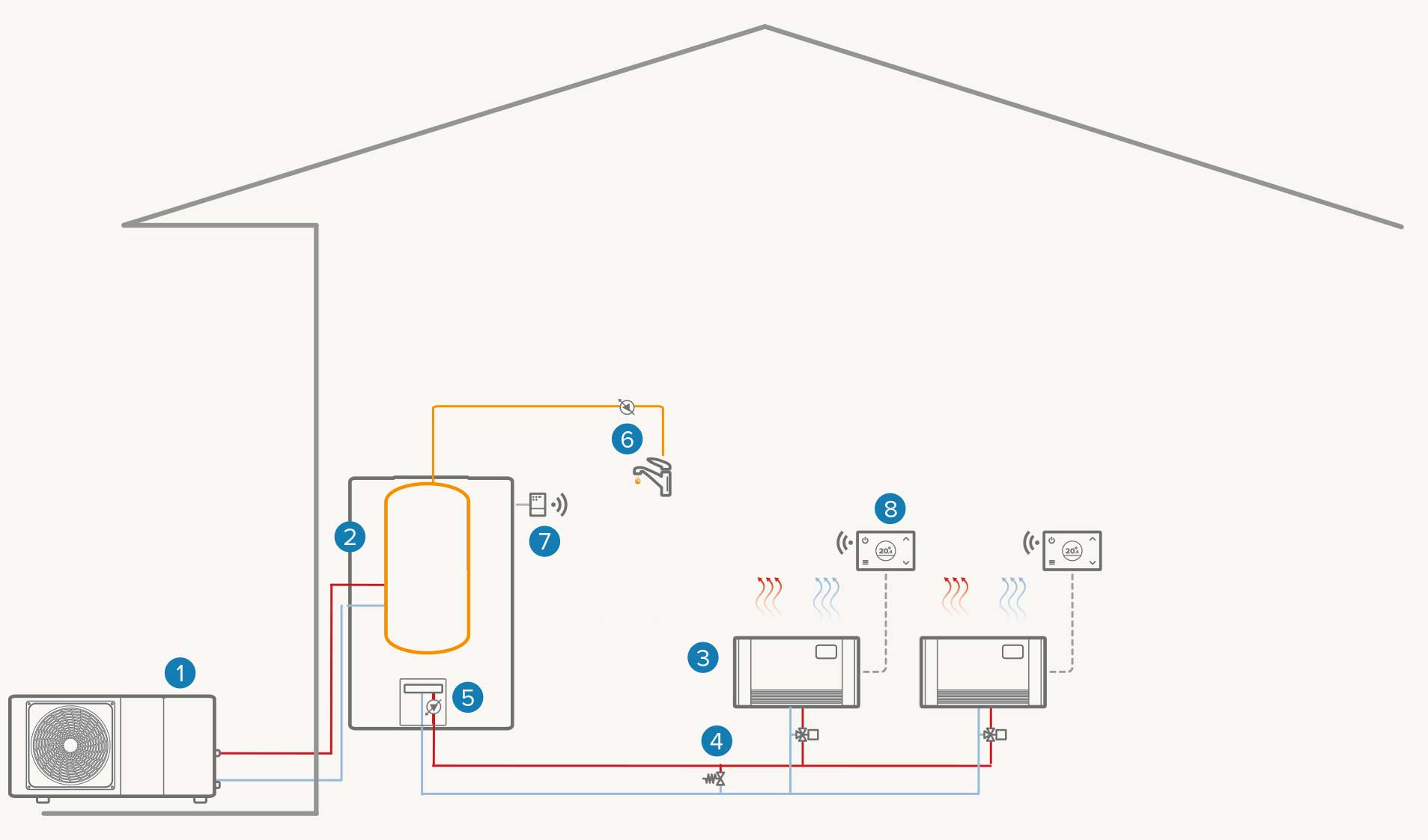

Possible combinations
Single booster single-area system: Heating / DHW
- outdoor unit
- indoor unit
- heating area
- bypass*
- hydraulic separator single-area kit plus pump
- DHW recirculation pump
- SwitchConnect Wi-Fi receiver
- Wi-Fi chronothermostat HID-TConnect2
*from external supply

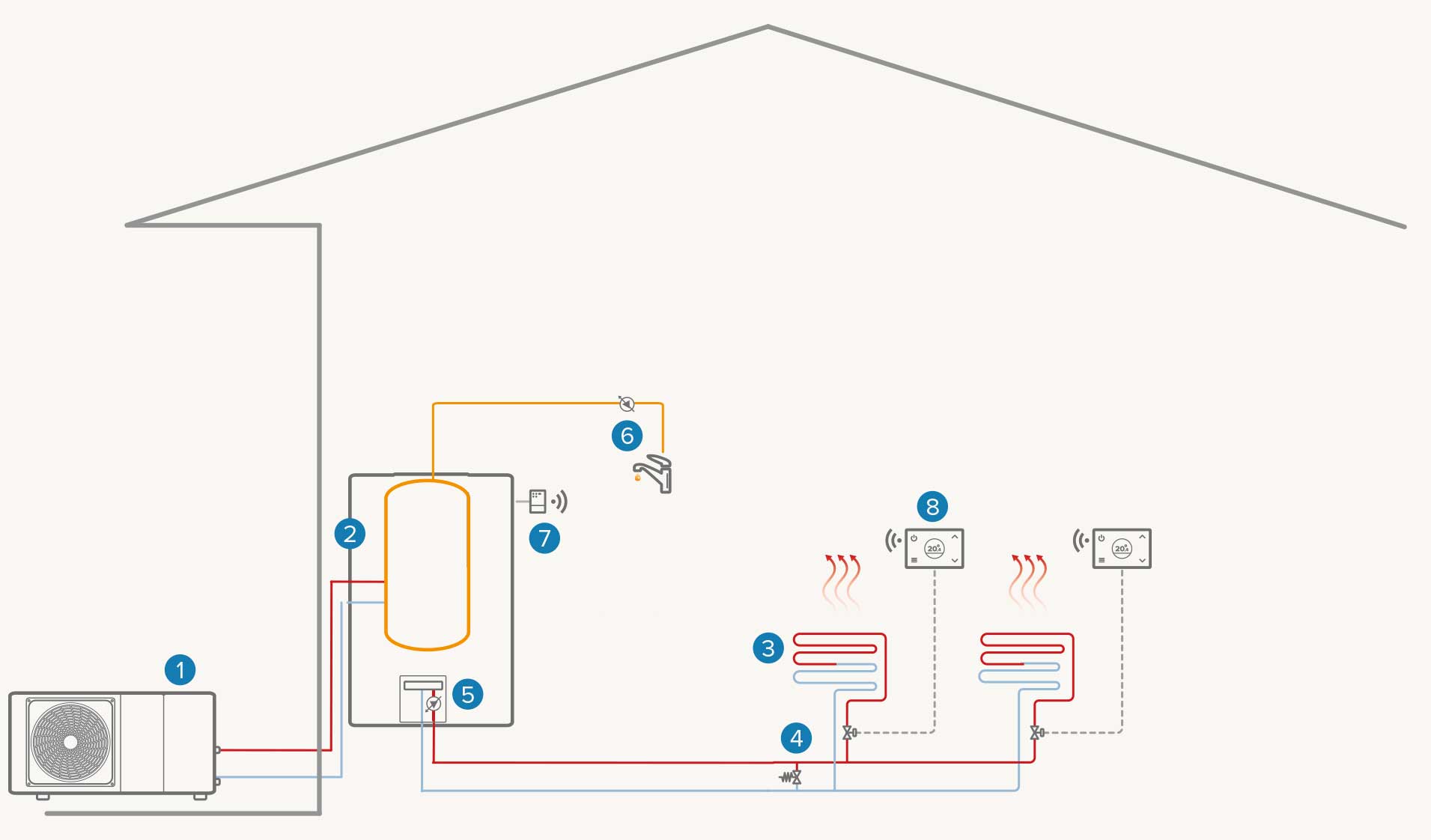

Possible combinations
Single booster single-area system: Heating / DHW
- outdoor unit
indoor unit
heating area
bypass*
hydraulic separator single-area kit plus pump
DHW recirculation pump
SwitchConnect Wi-Fi receiver
Wi-Fi chronothermostat HID-TConnect2
*from external supply
